Setting up the router Mercusys

We connect the router to the computer using the cable supplied with the router. It is necessary to connect the cable to any blue LAN port of the router and to the port of the computer's network card. Do not connect the internet cable to the router or computer until the setup is complete.



You need to open a browser on your computer and type the address http://192.168.0.1 in the address bar, if nothing happened, try to dial http://192.168.1.1

In the authorization page that opens, type in the username and password fields the word - admin

If the quick settings wizard opens, close it by clicking the Skip icon.





Next, go to the Advanced Settings tab.





Changing the IP address of the router



Go to the Network - LAN Settings section.

1. In the LAN IP Settings, select Manual.
2. Change the IP address from "192.168.1.1" to "192.168.0.1" (required). If the default parameter "192.168.0.1" is already set - nothing needs to be changed, go to the next item.

We save the changes by clicking the Save button.





After updating the IP address of the router, we return to the settings page at the new address: http://192.168.0.1, where we again enter the login\password.



Internet connection setup

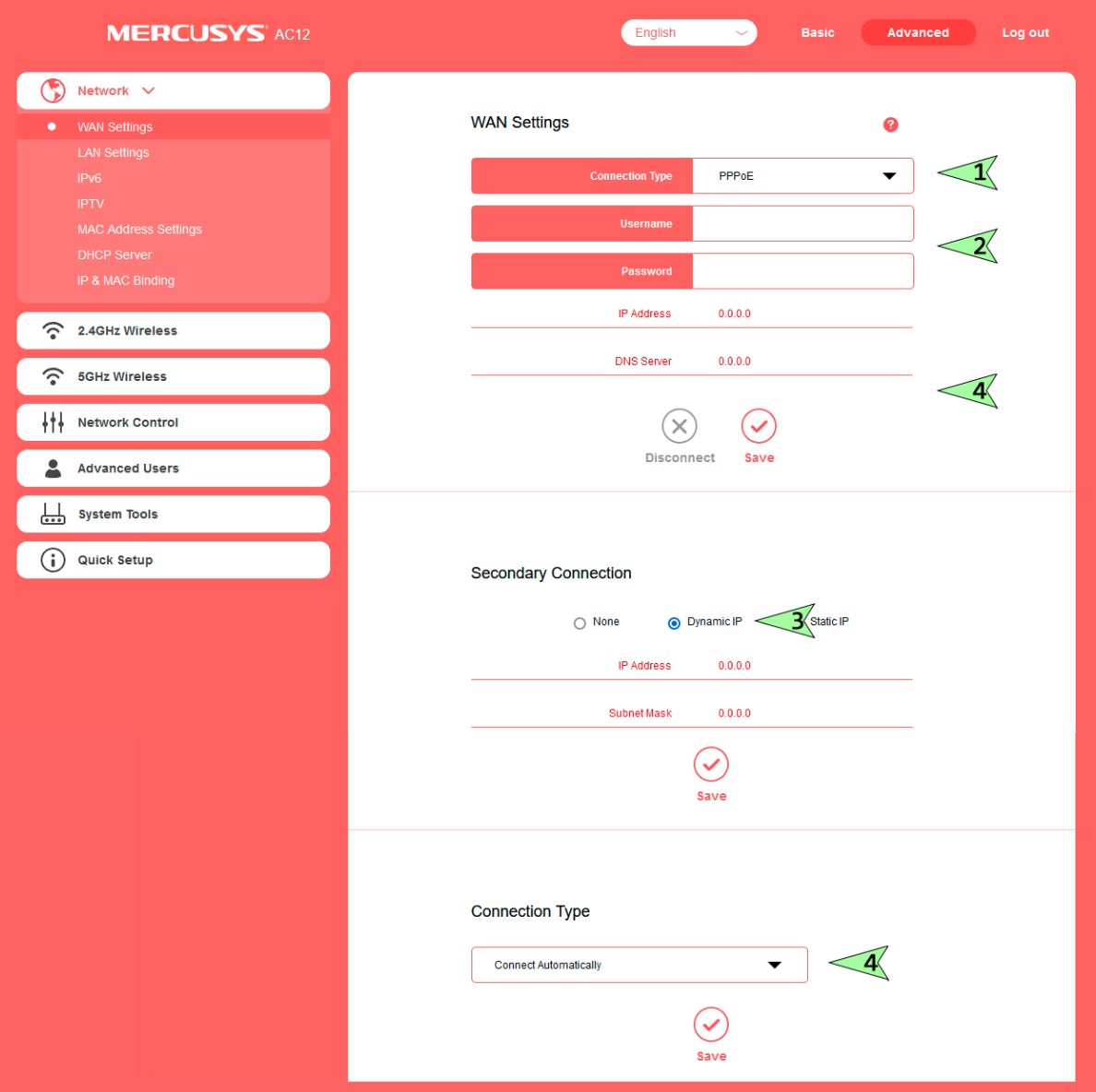

Go to the Network - WAN Settings section.

1. In the Connection Type field, select PPPoE.
2. In the Username field, specify the login and in the Password field, specify the password from the Internet agreement.
3. In the Secondary connection section, put a dot on the Dynamic IP address.
4. In the Connection Mode section, select Connect automatically.

We save the changes by clicking the Save button.





Setting up a Wi-Fi wireless network

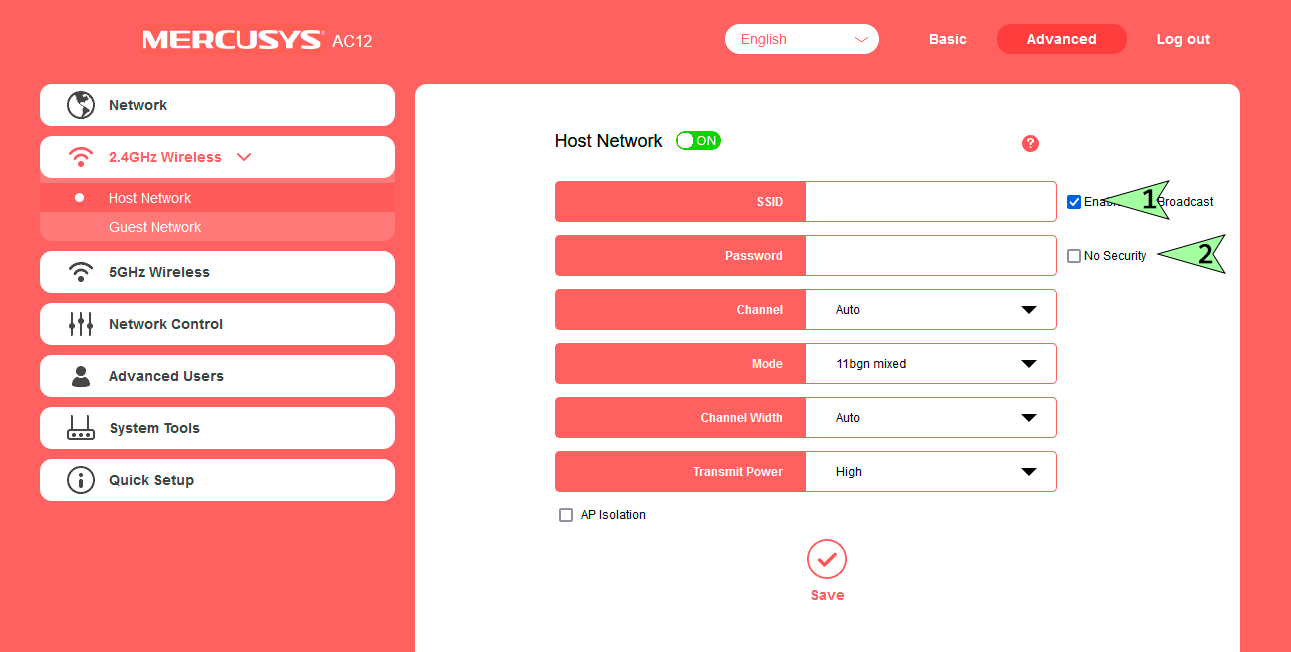

Go to the 2.4GHz Wireless Mode - Main Network.

1. In the Wireless network name (SSID) field, set the desired name for the Wi-Fi network.
2. Uncheck the No protection box and enter the desired password for your Wi-Fi network in the Password field (the password must be at least 8 characters).

We save the settings with the Save button.





Go to the 5GHz Wireless Mode - Main Network.

1. In the Wireless network name (SSID) field, set the desired name for the Wi-Fi network.
2. Uncheck the No protection box and enter the desired password for your Wi-Fi network in the Password field (the password must be at least 8 characters).

We save the settings with the Save button.





Changing the binding to the device

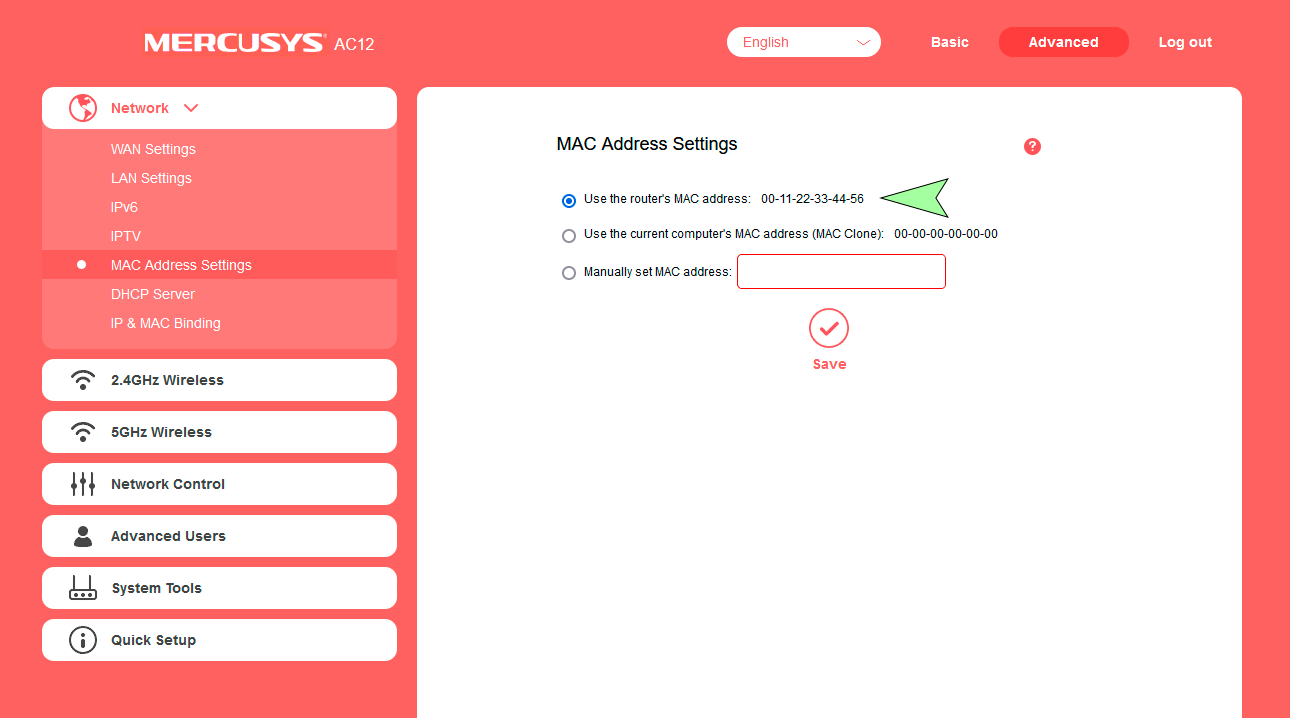

We connect the Briz cable to the WAN port of the router. Go to the Network section - MAC address settings. We put a dot in front of the Use the MAC address of the router item and it is necessary to inform the technical support the value from this field.





The router configuration is complete.
